LTE-M

The evolution of IoT infrastructure and widespread adoption of IoT devices creates a need for cellular communication technologies optimized for IoT. LTE-M (Long Term Evolution for Machines) — also known as LTE-CatNB — and NB-IoT (Narrow Band IoT) — also known as LTE-CatNB — have emerged as two leading IoT cellular technologies to help meet IoT cellular connectivity requirements.

Both technologies are growing rapidly, with LTE-M available in countries in the Americas, Europe, Australia, and Asia. In fact, according to GSMA, a total of 60 LTE-M commercial networks have been launched worldwide.

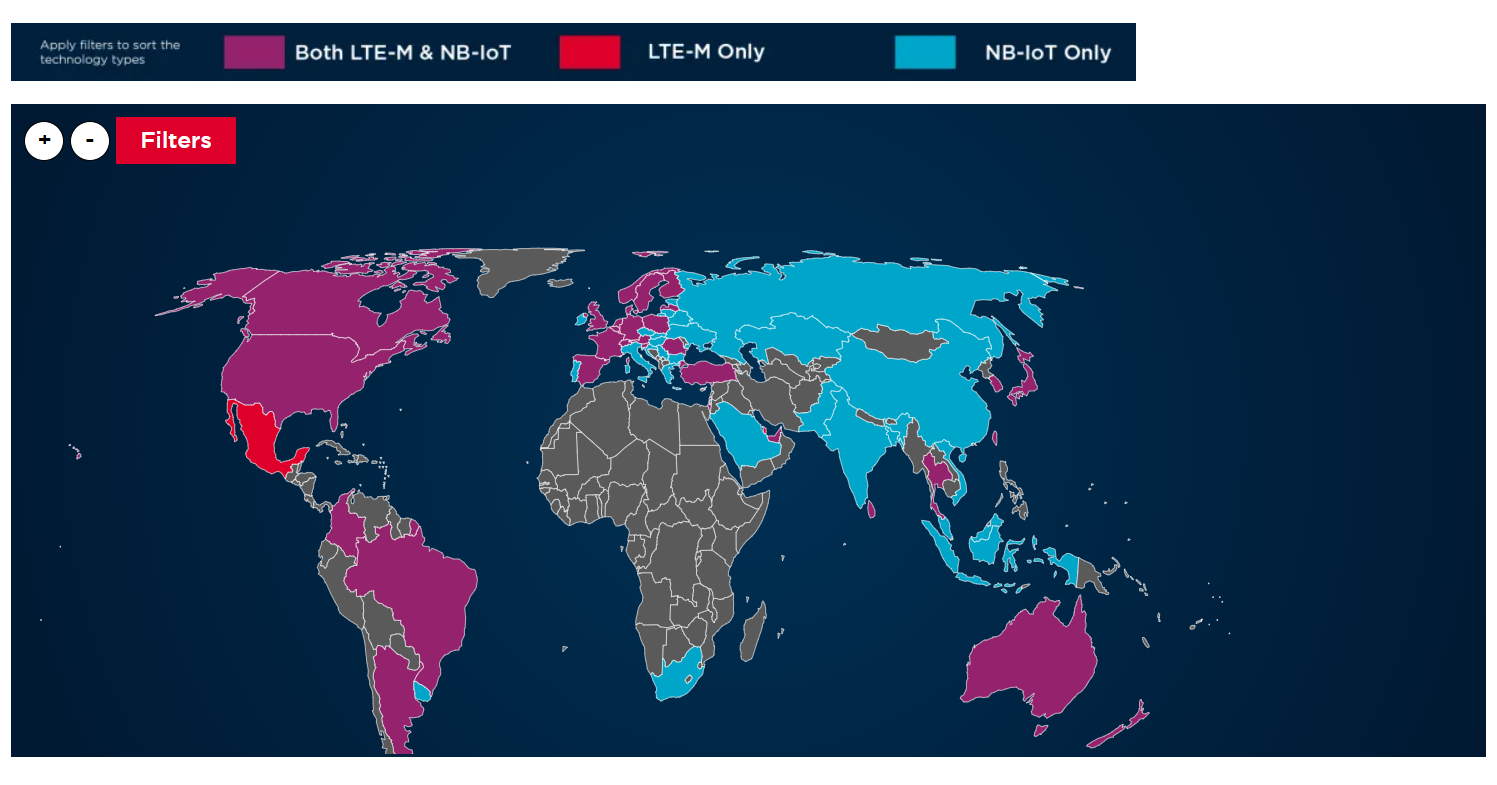

Deployment status of LTE-M and NB-IoT (Source

Two of the key characteristics any commercially viable IoT connectivity technologies must have are:

  • Low power consumption- Many IoT devices are battery-operated, so power consumption is critical
  • Low cost- Cost is an important factor in the adoption of IoT devices

Additionally, IoT applications tend to have lower bandwidth and speed requirements than traditional IT infrastructure. For most IoT devices, speeds in the Kbps are good enough.

LTE-M and NB-IoT were developed with these tradeoffs in mind. They offer lower power consumption and lower cost while operating at lower bandwidth and lower speed compared to 4G (LTE-Cat1 and above) networks.

2G (GSM) and 3G were viable low-cost cellular options for IoT networks in the past, but the shift of consumer cellular networks to 4G and later is phasing them out of modern applications. LTE-M and NB-IoT fill this gap because they can use 4G infrastructure.

This article will explore LTE-M in depth including its features, differences from other cellular connectivity technologies, applications, and best practices for selecting and using LTE-M solutions.

Executive summary

Below is a summary of the features and use cases of LTE-M.

LTE-M Overview
Characteristic Description
Power LTE-M consumes lower power than traditional 2G and 3G technologies, and also LTE-Cat1, thanks to technologies like PSM and eDRX. Power consumption between NB-IoT and LTE-M is comparable and depends on the application
Data rate LTE-M provides a data rate of ~1 Mbps, which is ideal for most IoT applications. This is much higher than GSM and NB-IoT, but lower than LTE-Cat1 and above
Cost LTE-M modules are cheaper than LTE-Cat1 modules, however, they may be 2x or more expensive compared to GSM modules.
Bandwidth LTE-M operates in a bandwidth of 1.4 MHz, which is higher than the ~200 kHz bandwidth of NB-IoT and GSM. This is lower than the 20MHz bandwidth of LTE-Cat1, but enough for most IoT applications
Applications LTE-M is ideal for applications requiring mobility and moderately high data rates

Network Infrastructure for LTE-M

LTE-M works on existing LTE infrastructure. As an IoT developer, you only need to worry about the selection of the LTE-M module and hardware integration. The rest of the network infrastructure is taken care of by the cellular service provider whose SIM card you use in your module. The diagram below provides an overview of how LTE-M network infrastructure works.

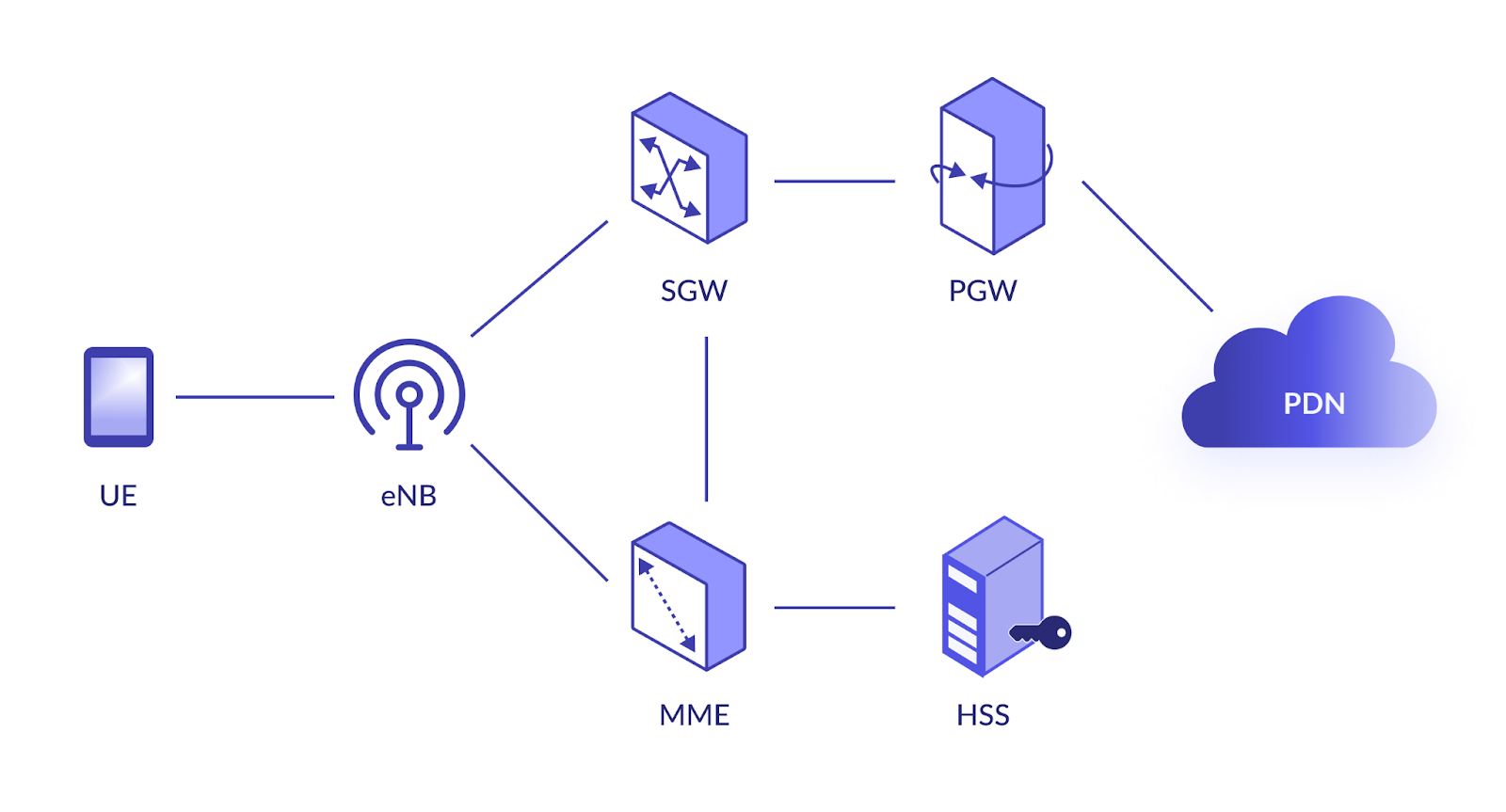

LTE Network Architecture. (Source)

As you can see, on the one end, there is the UE (User Equipment), i.e., your device, and on the other, there’s the PDN (Packet Data Network), that you’d like to connect to. The UE is connected to eNodeB which is the physical hardware that communicates wirelessly with the UE (similar to the base transceiver station with GSM). MME (Mobility Management Entity) authenticates the UE with the help of the HSS (Home Subscriber Server) database.

The HSS database knows which user should be able to access which PDN, their Quality of Service, and so on. The PDN is connected to the PGW (PDN Gateway), which is connected to the SGW (Serving Gateway). The SGW ensures that the users don’t face any disruption while moving between different eNodeBs, and acts as the link between the eNodeB and the PGW.

For a deeper dive, you can read the TutorialsPoint article on LTE network infrastructure.

Global Edge Computing Platform
Platform
Azure IoT Edge
AWS IoT Greengrass
Macro
meta
Real-Time Event Processing
✔️
✔️
✔️
Internet Scale Throughput
✔️
✔️
✔️
Stateful Edge Device Processing
✔️
✔️
✔️
Cross-Region Replication
✔️
✔️
Geo-Fencing and Data-Pinning
✔️
Start a free trial
Platform
Real-Time Event Processing
Internet Scale Throughput
Stateful Edge Device Processing
Cross-Region Replication
Geo-Fencing and Data-Pinning
Azure IoT Edge
✔️
✔️
AWS IoT Greengrass
✔️
✔️
✔️
Macrometa
✔️
✔️
✔️
✔️
✔️

LTE-M vs. NB-IoT

So far, we’ve discussed how LTE-M and NB-IoT are both relatively low-cost and low-bandwidth cellular technologies popular for IoT applications. However, they do have several key differences.

From an application perspective, as a rule of thumb: use LTE-M for mobile IoT devices, and use NB-IoT if the device will is stationary and transmits at very low data rates.

The table below details the differences in data rates, bandwidth, and latency for LTE-M and NB-IoT.

LTE-M vs. NB-IoT
Metric LTE-M NB-IoT
Max Data Rate (Downlink) 1 Mbit/s 26 kbit/s
Max Data Rate (Uplink) 1 Mbit/s 66 kbit/s
Bandwidth 1.4 MHz 180 kHz
Latency 10-15 ms 1.6-10s

However, these aren’t the only differences. The sections below examine some of the other differences between LTE-M and NB-IoT.

LTE-M vs. NB-IoT: Power Consumption

Both LTE-M and NB-IoT use PSM (Power Saving Mode) and eDRX (extended Discontinuous Reception) to save power. Generally, people assume that LTE-M consumes more power than NB-IoT. However, that is not always true. It depends on the application. While LTE-M may consume more power during data transmission, short message durations may enable LTE-M to consume less power overall than NB-IoT.

LTE-M vs. NB-IoT: Mobility

LTE-M performs seamless cell handover (i.e., switching between cell towers or eNodeBs). NB-IoT does not.

Once NB-IoT moves out of the range of a tower, it increases the power to stay connected. If NB-IoT disconnects from a tower, it must register with the network again. Thus, if your application requires mobility, LTE-M is the way to go.

LTE-M vs. NB-IoT: Technology

NB-IoT uses a slightly different technology (DSSS modulation) than LTE-M. LTE-M works only on 4G architecture.  NB-IoT works with 2G and 3G architecture as well. Going forward, both LTE-M and NB-IoT are projected to support 5G.

LTE-M vs. GSM

Until GSM is completely phased out, IoT engineers may need to choose between LTE-M and GSM. If your device is expected to last for more than 2-3 years, then choosing LTE-M is a no-brainer, as most operators plan to shut down 2G services by 2025.

If you are developing a device for shorter lifespans, here are some essential factors to help you make the decision.

LTE-M vs. GSM: Cost

The cost of an LTE-M module can be 2x or more than a GSM module. This is perhaps the primary reason there is some inertia in moving from GSM to LTE-M. For instance, Quectal’s GSM Module (M95) costs ~5 USD, while the LTE-M module (BG95) costs ~12 USD.

LTE-M vs. GSM: Power consumption

LTE-M uses less power than GSM (23 dBm vs. 32 dBm). Thus, LTE-M is a better choice if power consumption is a significant consideration

LTE-M vs. GSM: Bandwidth and data rate

As you would expect, LTE-M wins hands down here. GSM has ~200 kHz bandwidth compared to 1.4 MHz for LTE-M. The data rate for GSM peaks at about 50 kbps, while it is 1 Mbps for LTE-M.

LTE-M vs. GSM: Range

LTE-M cell towers have nearly double the range (radius) of GSM cell towers. Therefore, a single cell tower can serve the LTE module for longer distances. This may not always be noticeable but it helps for mobile applications.

LTE-M vs. LTE-Cat1 and higher

In an earlier section, we saw that LTE-M is not yet available in all regions. In these regions, if one wishes to migrate from GSM to LTE, their best bet is LTE-Cat1.

While LTE-Cat1 has several features that are overkill for IoT, it’s the best option compared to the higher iterations of LTE (Cat4, Cat 6, and so on). Therefore, if LTE-M isn’t available, LTE-Cat1 is best for applications that require mobility or higher data rates than NB-IoT.

However, to give you a perspective, here is how LTE-M, LTE-Cat1, and LTE-Cat4 compare in terms of data rate and bandwidth.

LTE-M vs. LTE-Cat1 vs. LTE-Cat4
Metric LTE-M LTE-Cat1 LTE-Cat4
Max Data Rate (Downlink) 1 Mbit/s 10 Mbit/s 150 Mbit/s
Max Data Rate (Uplink) 1 Mbit/s 5 Mbit/s 50 Mbit/s
Bandwidth 1.4 MHz 20 MHz 20 MHz

Versions higher than Cat4 provide even higher data rates, and you can choose those versions if your application requires them. However, high data rates are not required for most IoT applications.

While Cat1 and above do not have PSM and eDRX to save power, Cat1 still consumes lower power than 2G and 3G.
